HYFH1800 A2B13D Aluminum Composite Panel Production Line Overview

Project Overview: A 4 Million Square Meter ACP Line in Central Asia

The HYFH1800 A2B13D aluminum composite panel production line has been supplied to a customer in Central Asia, a key region along the Belt and Road. The line is designed for an annual capacity of 4 million square meters and can produce non-combustible grade metal composite panels for architectural decoration.

Demand for fire safety facade panels is rising as more countries tighten rules on exterior cladding. A single ACP production line that can switch between several fire-resistant panel types gives a factory room to respond to different project requirements without adding separate equipment for each product.

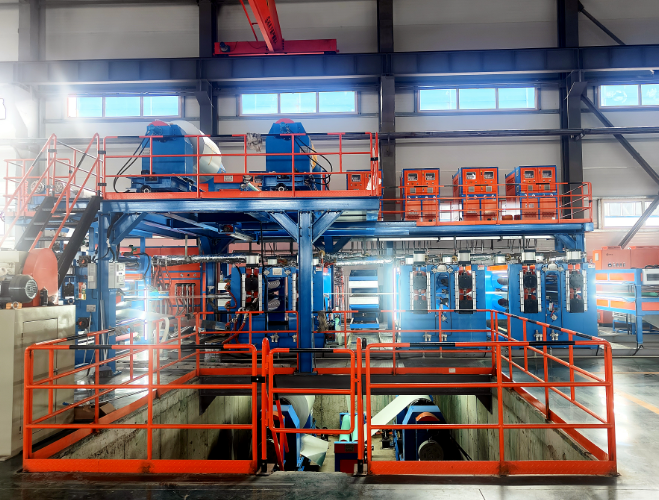

The HYFH1800 A2B13D line, showing the upper uncoiling platform, temperature control units and lamination section.

Key Specifications at a Glance

PLC Control That Simplifies Daily Operation

The line uses a full-line PLC control system with a human-machine interface. Operators can enter production parameters in one step, and the whole line is monitored in real time from the same screen.

What this means on the factory floor

• Recipe-style parameter setting reduces the time spent on manual adjustment during product changes.
• Real-time monitoring of temperature, tension and speed helps operators notice drift early.
• Less manual intervention lowers commissioning loss, meaning fewer scrap meters at start-up.
• Stored settings make it easier to repeat a panel specification from one batch to the next.

Three Fire-Resistant Panel Types on One Line

The line is set up for A2 non-combustible ACP, Russia standard fireproof ACP and 3D aluminum core ACP. Each one is aimed at a different set of project needs, and an ACM production line that covers all three lets a manufacturer serve several markets from the same workshop.

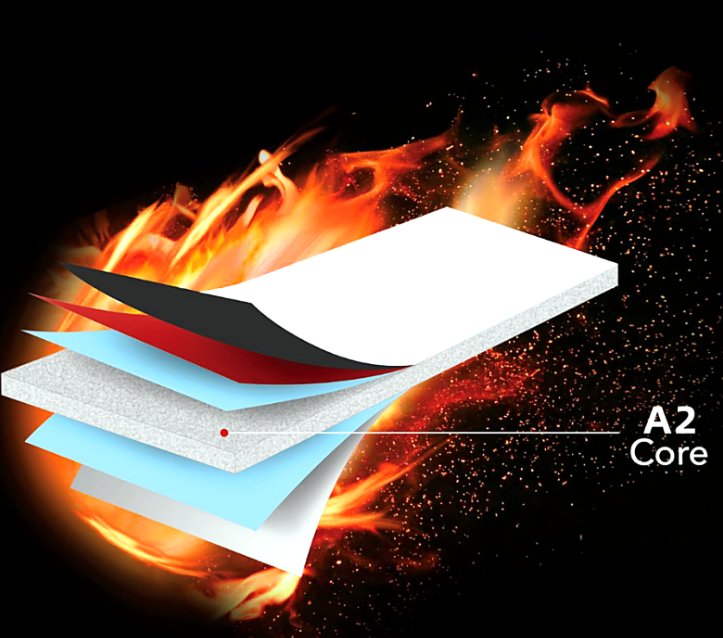

Layered structure of an A2 core panel: coated aluminum skins, bonding layers and a mineral-filled core.

Where each type is typically used

• A2 non-combustible ACP: exterior curtain walls and public buildings where limited combustibility is specified.
• Russia standard fireproof ACP: projects in markets that refer to Russian-based fire requirements.
• 3D aluminum core ACP: decorative interior and exterior surfaces that need a shaped or textured look.

Flatness and Bond Strength From Calibrated Composite Rollers

Flatness and bond strength are the two properties buyers notice first. On this aluminum plastic panel machine, the composite roller groups are calibrated so that pressure is applied evenly across the panel width. Even pressure helps the adhesive layer spread consistently and limits waviness after cooling.

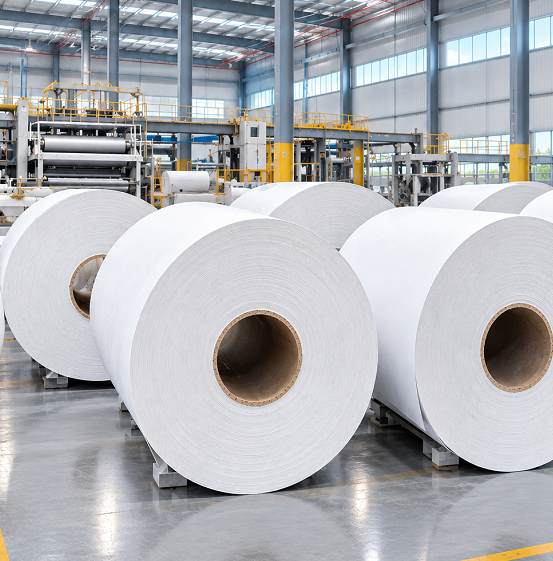

Coated aluminum coils are the starting material for the upper and lower panel skins.

Good roller performance starts with good coil preparation. Coil width, thickness tolerance and surface cleanliness all affect how the skins behave in the lamination zone, so incoming inspection is a useful habit for any panel factory.

Planning Output: What 4 Million Square Meters Means Per Day

An annual figure is easier to plan around once it is converted into daily output. The chart below divides 4,000,000 square meters by the number of operating days in a year. It is a simple arithmetic example and does not represent a production forecast.

Planning arithmetic only. Actual output depends on panel type, thickness and shift pattern.

High-Speed Continuous Production and Its Effect on Output

The overall structure of the line is optimized for high-speed continuous production. When the line runs for longer periods without stopping, hourly output rises and fixed operating costs are spread across more panels. The chart below shows how an even production schedule builds up to the annual target.

Illustration of an even production pace toward 4 million square meters. Real schedules vary with orders and maintenance.

Finished Panels for Interior and Exterior Applications

Panels from this line serve both interior decorative use and exterior curtain walls. Surface finishes can range from plain colors to wood-grain designs, while the mineral core keeps the panel within the non-combustible category when A2 material is used.

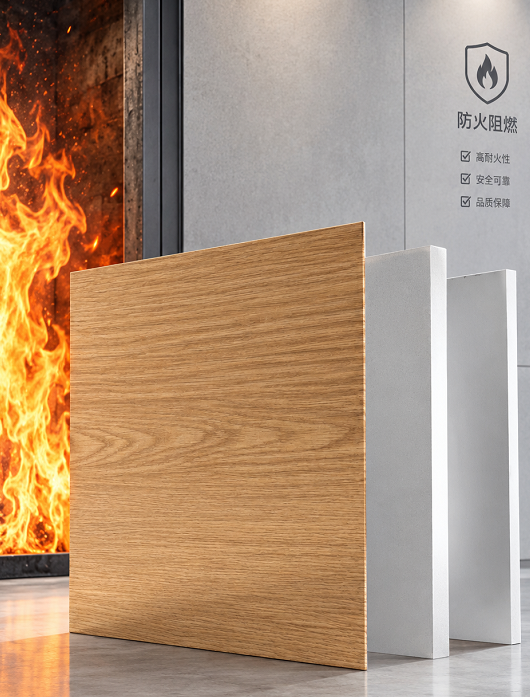

Fireproof composite panel samples with a wood-grain finish and plain white edges.

Common project uses

• Exterior curtain wall cladding for commercial and public buildings.
• Corridor, lobby and elevator interior wall panels.
• Decorative ceilings and column covers in transport and retail spaces.

Build Quality and After-Sales Support for Panel Manufacturers

Each unit is built to strict manufacturing standards, with attention to structure, roller alignment and electrical layout. This supports stable operation and a long service life. Support after delivery is also part of the project, including installation guidance, operator training and follow-up service for building material machinery customers in different regions.

For a factory in Central Asia or any other market, a clear support plan reduces downtime during the first months of operation, when operators are still learning the line.

About Zhangjiagang Hongyang Machinery Equipment Co., Ltd.

Zhangjiagang Hongyang Machinery Equipment Co., Ltd. is a national enterprise specializing in the R&D and manufacturing of intelligent equipment for metal composite materials, providing systematic solutions for the global construction materials industry. The company is a drafting unit of the standard for non-combustible metal composite panels for architectural decoration and a standing council member of the Metal Branch of the China Building Materials Federation.

Its core products cover three technology systems: fire-resistant aluminum composite panel production lines, aluminum honeycomb core machines with honeycomb core metal composite panel production lines, and multifunctional customized metal composite panel (MCP) production lines. Together they include 12 categories of high-end production lines, covering A2 and B1 fire-resistant materials, 3D aluminum-core panels and aluminum honeycomb series products.

Frequently Asked Questions

Q1: What is the HYFH1800 A2B13D production line?

It is an aluminum composite panel production line designed for A2 non-combustible ACP, Russia standard fireproof ACP and 3D aluminum core ACP, with an annual capacity of 4 million square meters.

Q2: How is the line controlled?

A full-line PLC system with a human-machine interface allows one-step parameter setting and real-time monitoring of the whole line.

Q3: Which panel types can it produce?

Interior decorative panels and exterior curtain wall panels, including A2 non-combustible ACP, Russia standard fireproof ACP and 3D aluminum core ACP.

Q4: How does the line support flatness and bonding?

Calibrated composite roller groups apply pressure evenly across the panel width, which supports flat panels and consistent adhesion between skin and core.

Q5: What after-sales support is available?

Support covers installation guidance, operator training and follow-up service for panel manufacturers in different regions.
