How is Aluminum Honeycomb Core Material Manufactured?

Aluminum Honeycomb Core Material: A Pioneer in Lightweight Construction and Transportation

In today's industrial sectors that pursue lightweight, high-strength, and environmentally friendly materials, aluminum honeycomb core material has become an indispensable material. With its unique honeycomb structure, it not only possesses extremely high specific strength and stiffness but also excellent sound insulation and heat insulation properties, making it widely used in aerospace, high-speed trains, ships, and modern building curtain walls and interior decoration.

How exactly does this seemingly simple honeycomb structure transform from basic aluminum foil into the core of a high-performance composite material?

Core Manufacturing Process Breakdown of Aluminum Honeycomb Core Material Machines

The manufacturing of aluminum honeycomb core materials is a multi-step, highly automated process, and the aluminum honeycomb core material machine is the core that completes this series of complex processes. The entire manufacturing process can be broken down into the following key steps:

1. Aluminum Foil Preparation and Adhesive Application

The raw material for manufacturing honeycomb core materials is high-purity aluminum alloy foil. In the first step of the production line, high-quality aluminum foil is fed into the equipment.

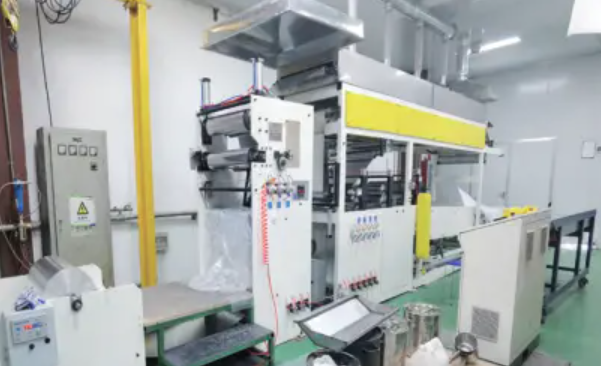

Adhesive Application System: The adhesive application system of the aluminum honeycomb core material machine uniformly and precisely coats the aluminum foil with bonding adhesive. The adhesive application pattern is crucial, as it determines the final pore size and shape of the honeycomb. This step must ensure the consistency and uniformity of the coating thickness.

2. Lamination and Cold Pressing

The adhesive-coated aluminum foil is automatically cut to specified lengths and then staggered and laminated according to a predetermined pattern. The laminated aluminum foil stack then undergoes a cold pressing process to ensure sufficient adhesive contact between each layer, forming a stable "aluminum foil block."

3. Hot Press Curing and Stretching

This is a key step in manufacturing the honeycomb structure. The laminated aluminum foil block is fed into the hot press curing unit of the aluminum honeycomb core material machine. Under precisely controlled temperature and pressure, the adhesive rapidly cures, firmly bonding all the aluminum foil layers together.

After curing, the machine uses a special mechanical device to stretch the cured aluminum foil block in a direction perpendicular to the plane of the aluminum foil. As the aluminum foil is stretched, the originally tightly stacked sheets open up in the uncoated areas, forming a perfect, continuous hexagonal or honeycomb structure.

4. Cutting and Standardization

Stretch-formed aluminum honeycomb cores are typically large blocks. To meet the needs of different engineering applications, high-precision cutting equipment with the aluminum honeycomb core forming machine precisely cuts the honeycomb blocks to the required thickness. These finished cores are then standardized and packaged according to customer requirements.

Technical Requirements and Advantages of High-Quality Aluminum Honeycomb Core Material Machines

An excellent aluminum honeycomb core material machine is not merely a combination of mechanical equipment, but also a manifestation of precision control technology. It needs to possess the following key technical characteristics to ensure the high quality of the final product:

• High-precision adhesive application system: Ensuring minimal tolerance in adhesive line width and spacing directly affects the uniformity of the honeycomb.


• Precise temperature and pressure control: Parameters in the hot-pressing curing process must be precisely and stably controlled to achieve optimal adhesive curing and core material strength.


• Constant-speed stable stretching: Stable stretching speed and uniform force application are crucial for forming a perfect honeycomb grid.



It is thanks to these advanced aluminum honeycomb core material machines that manufacturers can achieve large-scale, high-efficiency, and high-quality production, continuously providing lightweight, high-strength aluminum honeycomb core materials to the world.

From construction to transportation, the application prospects of aluminum honeycomb core materials are bright. And driving the development of this industry is the continuously innovative and upgraded aluminum honeycomb core material machine technology.
