Aluminum Honeycomb Core Machine

Aluminum Honeycomb Core Machine refers to specialized used for manufacturing aluminum honeycomb core materials. This material is widely applied in aerospace, construction, transportation, and other industries due to its lightweight properties, high strength, and cushioning performance.

Inquiry
  • Aluminum Honeycomb Core Machine
  • Aluminum Honeycomb Core Machine
  • Aluminum Honeycomb Core Machine
  • Aluminum Honeycomb Core Machine
  • Aluminum Honeycomb Core Machine
  • Aluminum Honeycomb Core Machine
Details Related Products

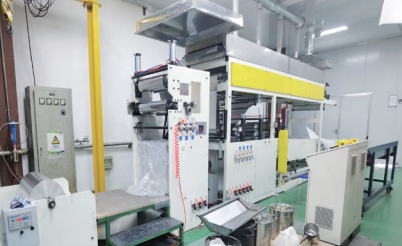

Aluminum Foil Gluing Machine

The machine is the main equipment for fabricating the aluminum honeycomb. The aluminum foil will undergo multilayer stacking after printing the glue on the surface, then stick together under high temperature, and then expand to a honeycomb structure. The machine can achieve automatic production to save manpower, guaranteeing quality, saving raw material, improving efficiency, so that it can save cost and increase the profit for the customer.

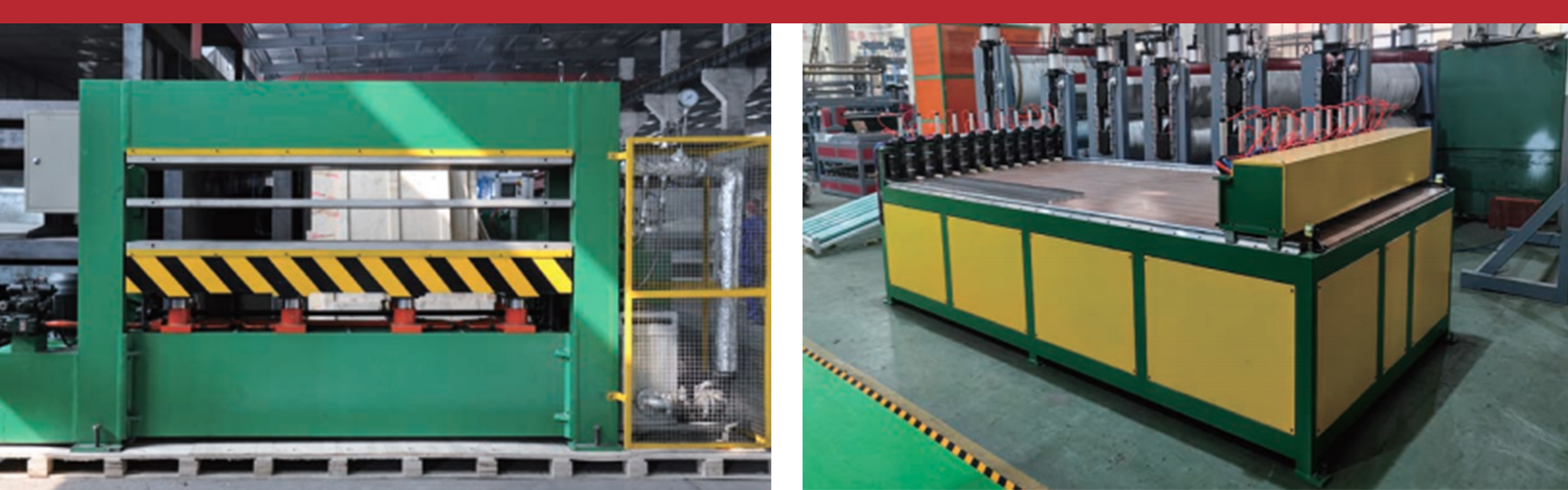

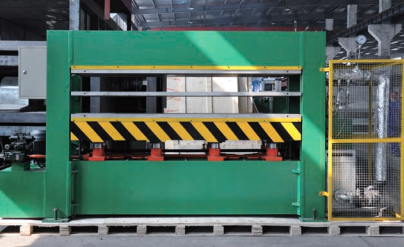

 Aluminum Honeycomb Core Hot Press Machine

The machine uses the conduction oil for heating, heating designed with subsections, low energy consumption, heat conduction uniformity, auto pressure maintaining, and heat preservation. Designed as three three-board two-press, the aluminum honeycomb core plate can be bonded good, flatness, no deformation after pressing.

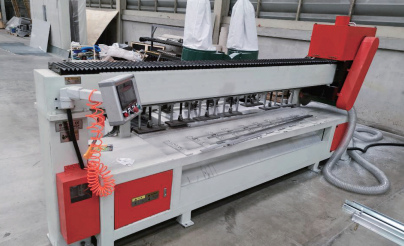

Aluminum Honeycomb Core Auto Sawing Machine

The machine is our initiative, high speed, high precision, and high gloss. The sawing section flatness can be within±0.1mm.		 Aluminum Honeycomb Core Expanding Machine

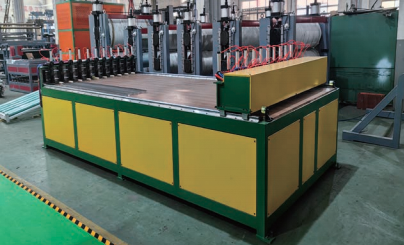

The machine is used to expand the aluminum honeycomb core. The function is to pull open the aluminum honeycomb core to a regular hexagon shape, Meanwhile, it can also be applied to test the quality and the strength of the honeycomb. Features: Compact structure, Operating is easy.

Raw material Specifications Parameters
Base material: Aluminum Foil (0.03-0.08mm) Thickness: 3-100mm Recommend: Depends on applications
Finished product: Honeycomb core Length: <12m Recommend: 2440mm、3050mm、4050mm

The finished product size can be customized.

Application

Hotel Public Building Hospital School Airport Railway Station Bus Station
Metro Station Tunnels Partitions Elevators Furniture Sign Board Display Unites

Fire Safety Compliance with High Standards

Certified by GB 8624-2012, EN 13501-1, and ASTM E84, meeting stringent fireproof requirements for high-rise building cladding, subway systems, interior decoration, and household applications. Combustion Performance: Non-combustible (Class A2-s1, d0,t0), smoke density≤50, zero' toxic fume emission, ensuring public safety.

High-Efficiency Continuous Production

Fully automated production line integrates batching- + mixing-→ forming-→hot-pressing→cooling →cutting →winding, achieving a speed of 1-3 meters/min with 40%+ higher output. Intelligent temperature control (土3°C) ensures uniform core material curing, eliminating defects like bubbles or delamination.

 Precision-Controlled Forming

Thickness tolerance≤士0.1mm; adjustable width (600- -2100mm) to accommodate diverse specifications.
Eco-Friendly Manufacturing

Fomaldehyde-free and asbestos-free formulation compliant with REACH/ROHS standards; VOCs emission ≤30mg/m.		 Versatile Functional Adaptability

Compatible with metal, fiberglass fabric, and other reinforcement layers to enhance mechanical properties (flexural strength≥15MPa).		 High-Reliability Equipment

Critical components (rolling mills, cutting blades) use wear-resistant alloy materials, ensuring≥10-year lifespan and <1% failure rate.
