Aluminum Composite Panel(ACP)Production Line

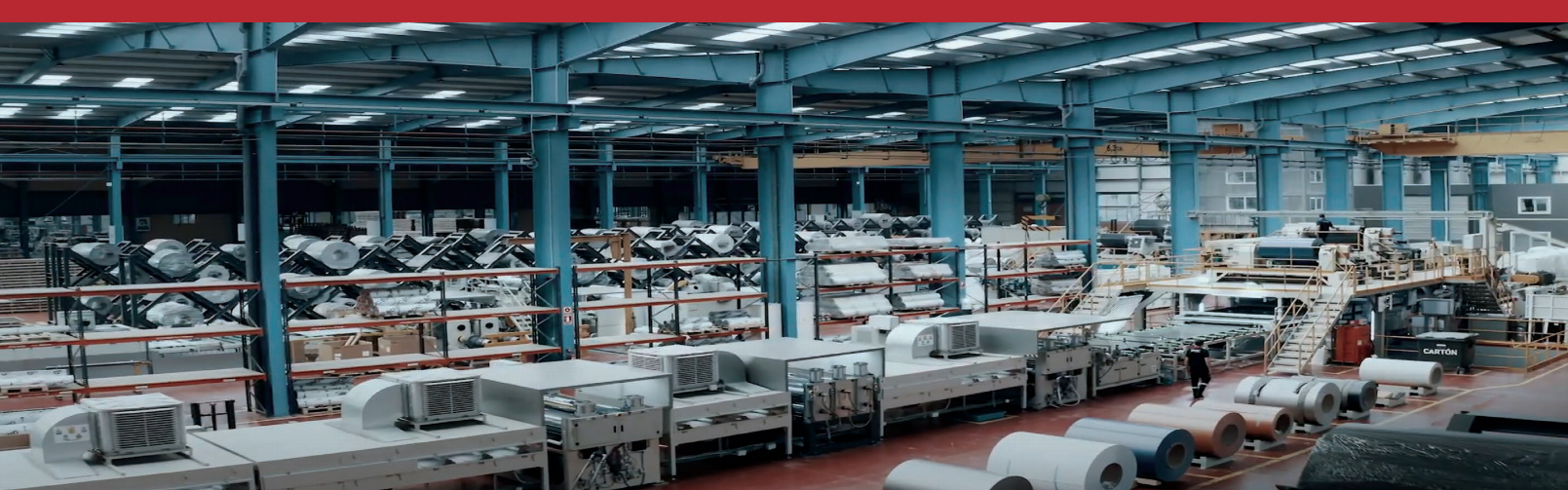

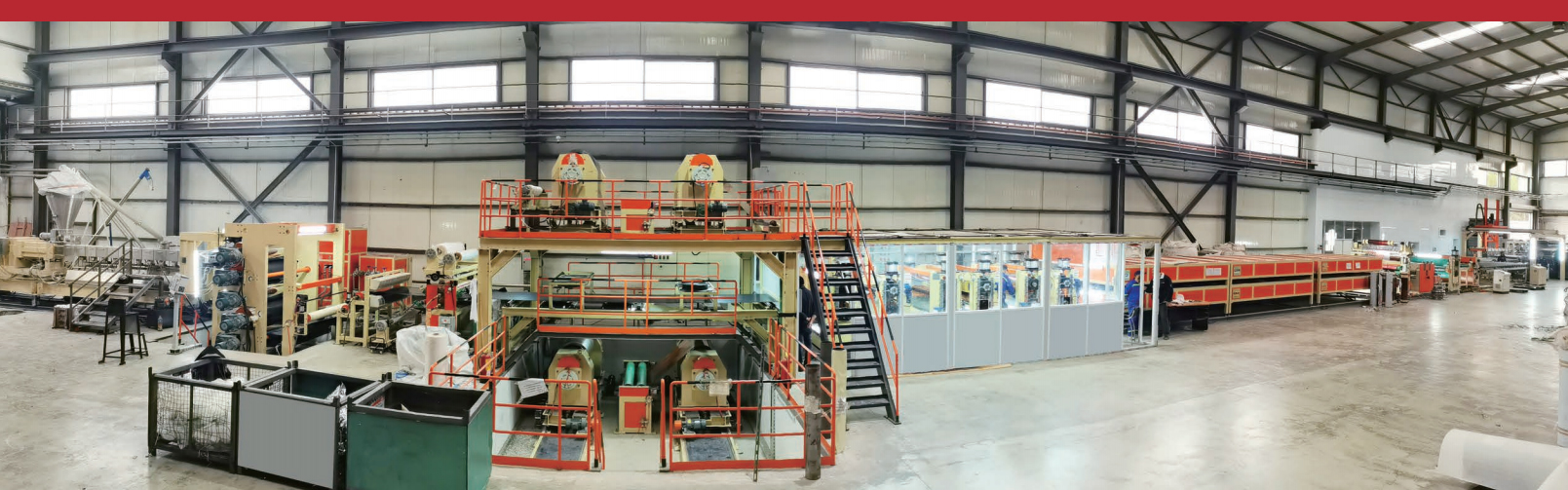

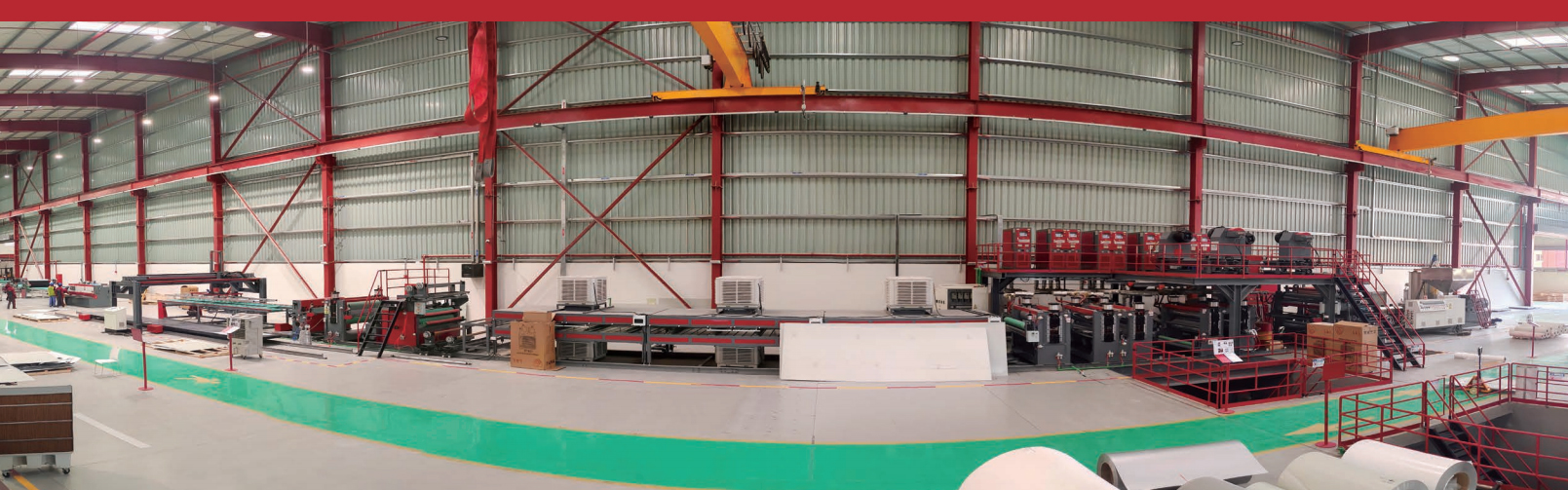

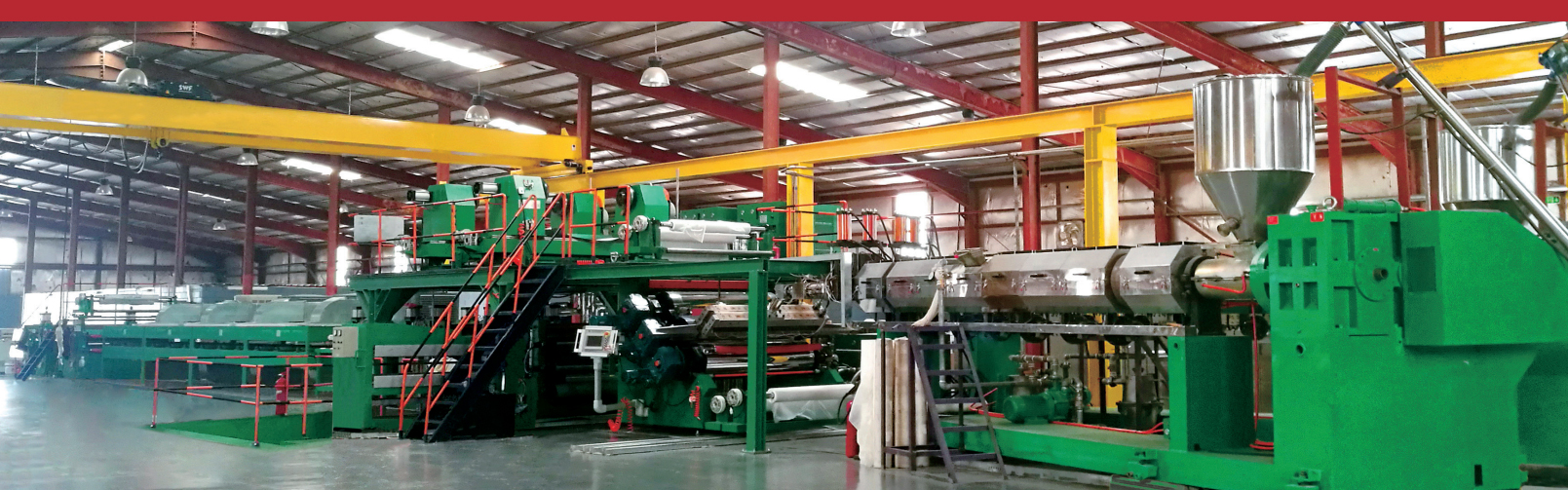

Aluminum-plastic composite panel (ACP) production line is an automated industrial system designed for the continuous manufacturing of aluminum-plastic composite panels (also known as aluminum composite panels, ACP sheets). These panels are widely used in architectural decoration, advertising signage, transportation, and other fields.

Inquiry
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
  • Aluminum Composite Panel(ACP)Production Line
Details Related Products
Raw material Specifications Parameters
Base material: Aluminum (0.018-0.5mm) Thickness: 2-6mm Recommend: 3mm、4mm
Coating: PE、HDPE、PVDF、FEVE Width: 1000-2100mm Recommend: 1220mm、1250mm、1500mm
Core: PE, B2, B1 Length: <12m Recommend: 2440mm、3050mm、4050mm

The finished product size can be customized.

Application

Hotel Public Building Hospital School Airport Railway Station Bus Station
Metro Station Tunnels Partitions Elevators Furniture Sign Board Display Unites

High-Efficiency Automated Control

Integrated automated processes including material feeding, calender polishing, automatic aluminum coil and adhesive film unwinding, hotpress bonding, cooling, cutting, and stacking.
Production speed: 2-10 meters/minute, significantly improving output capacity.
Automated control system (PLC+ HMI+ remote monitoring) reduces downtime and increases production efficiency by over 30%.

Precision Composite Advanced Technology

Multi-zone temperature-controlled hot pressing (土2°C accuracy) with precise tension control ensures high-strength bonding between aluminum foil (0.018-0.5mm) and core materials. Optionally choose low-temperature& high-temperature lamination processes to meet diverse product requirements.

 Higher Precision Quality Assurance

Optional automatic edge alignment, real-time dimensional monitoring, and CCD surface defect detection systems. Real-time quality tracking with automatic rejection of defective products, minimizing material waste.
Eco-Friendly Energy-Efficient Design

Optional energy-saving heating systems (thermal oil or electromagnetic heating) comply with green & low-carbon manufacturing standards.		 Flexible Applicable Multi-Functionality

Compatible with aluminum, copper, stainless steel, titanium-zinc, mirror-finish, and other functional metal composite panels. Suitable for architectural facades, interior decoration, advertising signage, digital printing, and other industrial applications. Supports customized integrated production lines for enhanced equipment compatibility.
