Extrusion Type Zero Water Absorb A2 Noncombustible Metal (Aluminum）Composite Panel Production Line

Extrusion Type Zero Water Absorb A2 Noncombustible Metal (Aluminum）Composite Panel Production Line
Property Standard Value
Total thickness GB/T 17748-2008 2mm / 3mm / 4mm / 5mm / 6mm
Aluminum skin thickness GB/T 17748-2008 0.2mm / 0.3mm / 0.4mm / 0.5mm
Width — ≤2000mm (customizable)
Fire classification GB 8624-2012 A2-s1,d0
Fire classification EN 13501-1 A2-s1,d0
Fire classification BS 476-6 & 7 Class 0 + Class 1
Surface burning ASTM E84 Class 1 (FS ≤25, SD ≤50)
Facade full-scale fire NFPA 285 PASS
Peel strength GB/T 17748 ≥ 120 N/mm
Flexural strength GB/T 17748 ≥ 150 MPa
Face coating — PVDF / PE / Custom


A2 Core Granules
Property Value
Composition Inorganic content ≥90%
Flame retardancy A2 rated
Processing Twin-screw

Inquiry
  • Extrusion Type Zero Water Absorb A2 Noncombustible Metal (Aluminum）Composite Panel Production Line
  • Extrusion Type Zero Water Absorb A2 Noncombustible Metal (Aluminum）Composite Panel Production Line
Details Related Products

Product Range (Outputs of the Production Line)
This production line achieves full-chain integration from core granules to finished panels, providing A2 fire-rated solutions:

A2 Non-Combustible ACP

Extruded A2 inorganic core + metal skins. Zero water absorption, superior peel strength.

Certified to EN 13501-1 / GB 8624 / BS 476 / ASTM E84.

Capacity: 5,000 sqm/day.

A2 Non-Combustible Core Granules

Organic-inorganic supramolecular coupled granules for screw extrusion. For manufacturers with existing extrusion lines.

A2 Non-Combustible Core Rolls

Continuous extruded core film on roll, ready for hot lamination with metal skins. Eliminates in-house extrusion. For composite panel manufacturers.


Core Advantages
From lab to mass production — every advantage is an industry barrier:

Supramolecular Coupling
Proprietary technology couples inorganic flame retardants with organic polymers at the molecular level, enabling screw extrusion at ≥90% mineral loading — a world first.

Zero Water Absorption
Conventional A2 cores absorb 3%-7% moisture, causing ≥20% peel strength loss. Our extruded core has near-zero absorption. The composite panel maintains mechanical properties in any humidity.

Screw Extrusion Production
Extrusion speed >3 m/min vs conventional hot-press <2 m/min. Continuous process guarantees batch consistency. Suitable for large orders.

100% Recyclable Waste
Production offcuts can be processed and reused in core extrusion — zero-waste manufacturing. At the customer's site, installation scrap also has recycling value.

Complete Global Certifications
A2 non-combustible certified across all four major economic zones: China, EU, UK, and USA. One of very few ACP brands genuinely ready for global export.

Full Vertical Integration
From granules → core rolls → finished ACP — the entire chain is in-house. Controlled quality, predictable lead times, competitive cost. Buy any intermediate product as needed.


Product Description

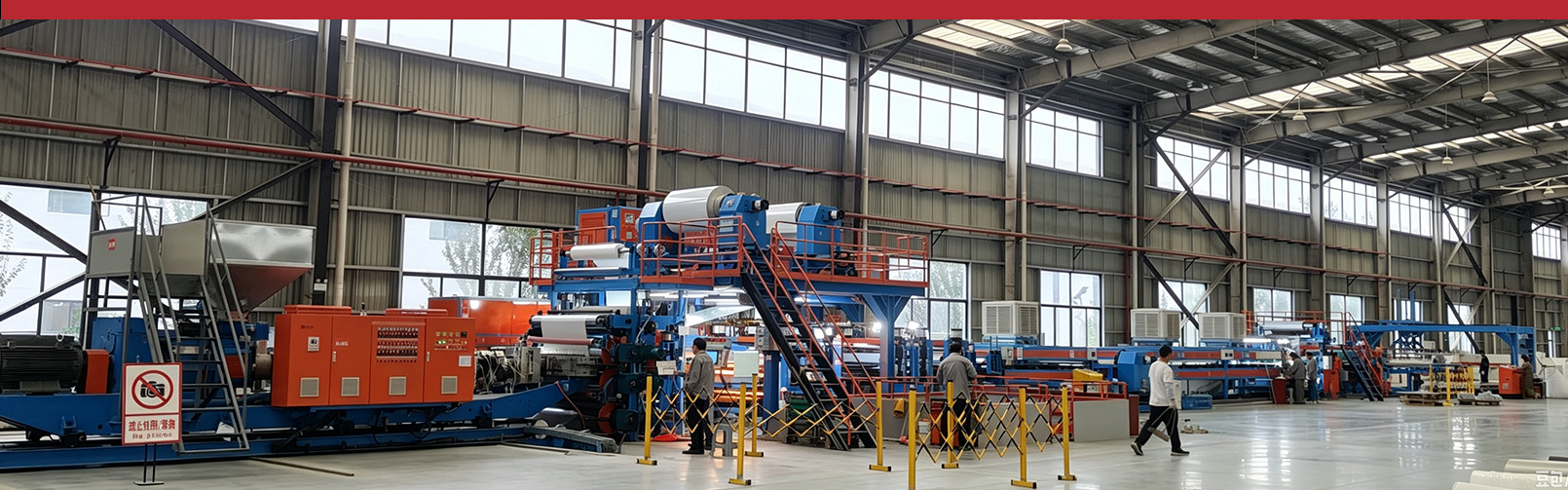

The Extruded Zero-Absorption A2 Non-Combustible Metal (Aluminum) Composite Panel Production Line is a complete manufacturing system designed for producing next-generation fire-rated building panels. This production line uses advanced extrusion technology to create A2-grade non-combustible cores with unique properties that set them apart from traditional panels. The system handles the entire production process—from raw material processing to finished panel output—making it a comprehensive solution for manufacturers seeking to enter or expand in the fire-rated facade market. With continuous production capabilities and full in-house control, this line delivers panels that meet the highest international fire safety standards.


Application Scenarios
High-rise building facades requiring strict fire-rated materials

Commercial buildings, hotels, hospitals, and educational facilities

Building renovation projects with updated fire safety requirements

Export-oriented manufacturers serving multiple international markets

Large construction projects needing consistent quality and reliable supply

Extrusion Type A2 Non‑Combustible Metal Composite Panel

Property Standard Value
Total thickness GB/T 17748‑2008 2mm / 3mm / 4mm / 5mm / 6mm
Aluminum skin thickness GB/T 17748‑2008 0.2mm / 0.3mm / 0.4mm / 0.5mm
Width — ≤2000mm (customizable)
Fire classification GB 8624‑2012 A2‑s1,d0
Fire classification EN 13501‑1 A2‑s1,d0
Fire classification BS 476‑6 & 7 Class 0 + Class 1
Surface burning ASTM E84 Class 1 (FS ≤25, SD ≤50)
Facade full‑scale fire NFPA 285 PASS
Peel strength GB/T 17748 ≥ 120 N/mm
Flexural strength GB/T 17748 ≥ 150 MPa
Face coating — PVDF / PE / Custom

Conventional A2 ACP vs. Extruded A2

Dimension Conventional A2 ACP Extruded A2
Core process Mineral‑filled + hot‑press Supramolecular coupling + screw extrusion
Water absorption 3%‑7% (continuous) ~0%
Peel strength loss >20% after moisture None
Core flexibility Brittle, cracks on bending Good elongation, bendable
Bonding method Hot‑press + adhesive film Continuous hot lamination + adhesive film
Production speed < 2 m/min > 3 m/min
Batch consistency Significant variation Continuous process, high consistency
Recyclability Difficult / not possible Fully recyclable
Overall cost Mature but high defect rate High automation, low defect rate
Transport loss Moisture weight gain / damage No moisture gain, lower logistics loss
